技术参数

◎规格：端钮盒铜条，小A(7×9)、中A(10×12)、大A(11×13)

◎电流配置：三相四线1.5(6)A带10个辅助端口

                      三相四线10(40)A带10个辅助端口

                      三相四线20(100)A带10个辅助端口

◎说明：弧形设计、美观大方，有三相三线小电流端钮盒可选配

   及可选配防窃盖。

TECHNICAL PARAMETERS

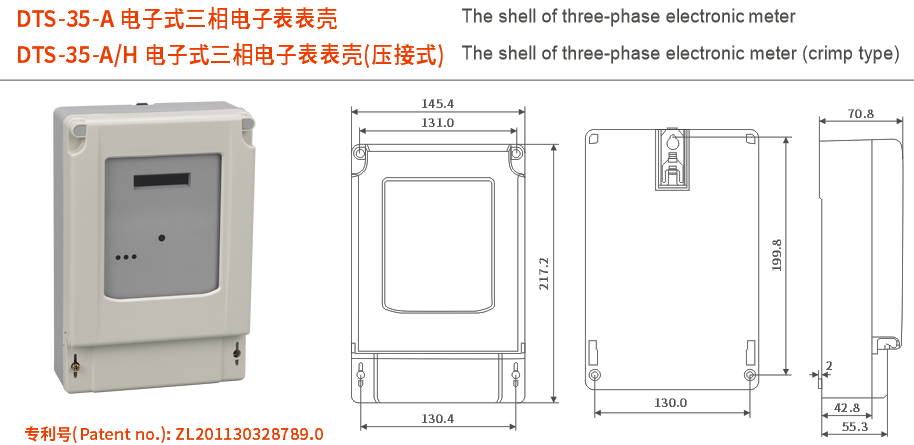

◎Specifications: copper bar of terminal box, small A(7×9), middle A

    (10×12), large A(11×13)

◎Current contiguration: three-phase four-wire 1.5(6)A with 10 auxiliary ports

                          three-phase four-wire 10(40)A with 10 auxiliary ports

                          three-phase tour-wire 20(100)A with 10 auxiliary ports

◎Note: arc design, nice appearance, Three-phase three-wire terminal

    box with low current port and anti-theft cover are optional.
