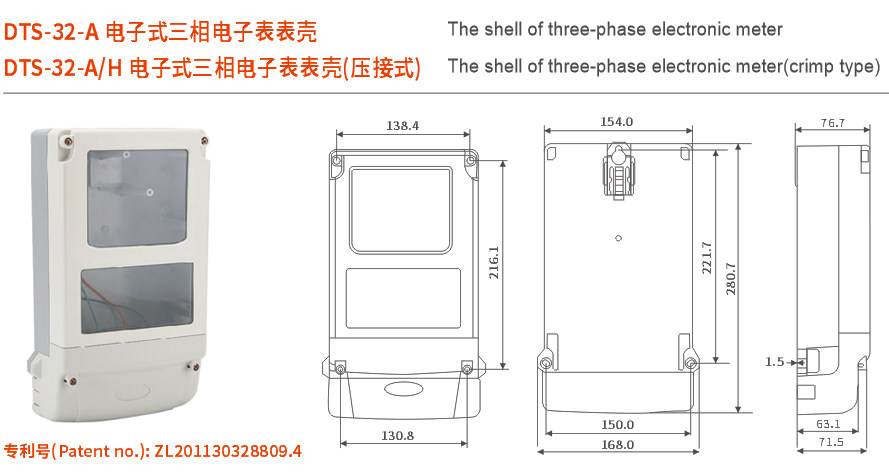

技术参数

◎规格：端钮盒铜条，小A(7×9)、中A(10×12)、

大A(11×13、13×15)

◎电流配置：三相四线1.5(6)A带10个辅助端口

                      三相四线10(40)A带10个辅助端口

                      三相四线20(100)A带10个辅助端口

◎说明：三相862安装尺寸，符合国家安装标准。另有出口型大

    电流(100A以上)端钮盒可配。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(7×9), middle A

    (10×12), large A(11×13,13×15)

◎Current configuration: three-phase four-wire 1.5(6)A with 10 auxiliary ports

                          three-phase four-wire 10(40)A with 10 auxiliary ports

                          three-phase tour-wire 20(100)A with 10 auxiliary ports

◎Note: three-phase 862 installation dimensions are in line with national

◎installation standards. There is also export-type high-current (above

   100A) terminal box for optional.
