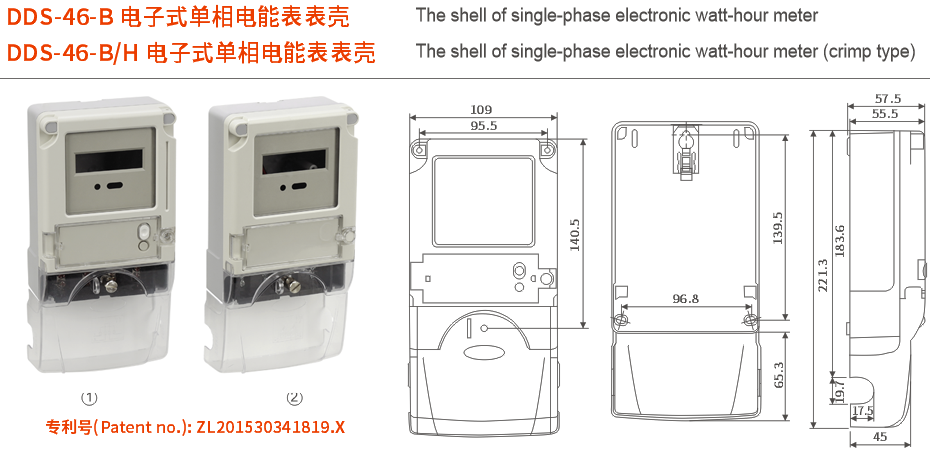

DDS-46-B 电子式单相电能表表壳
技术参数
◎规格:端钮盒铜条,小A(7×9、8×10.5)、中A(9×11)、
大A(10×12)
◎脉冲信号线:2、4、6、8线或2、4插片
◎电流配置:5(30)A带1-8组辅助端口
10(60)A带1-8组辅助端口
20(100)A带1-8组辅助端口
◎说明:采用塑料铅封设计,出口型表,端钮盒外置,可选配多种
标牌、各种防窃盖、拆分式端钮盒,压接式端钮盒、胶木端钮盒。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(7×9, 8×10.5),
middle A(9×11),large A(10×12)
◎Pulse signal lines:2,4,6,8 lines or 2,4 plug-in pieces
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note: it adopts plastic seal design, export-type meter, external terminal
box; it can choose a variety of signs, kinds of anti-thett cover, split
terminal box, crimp-type terminal box and Bakelite terminal box.
