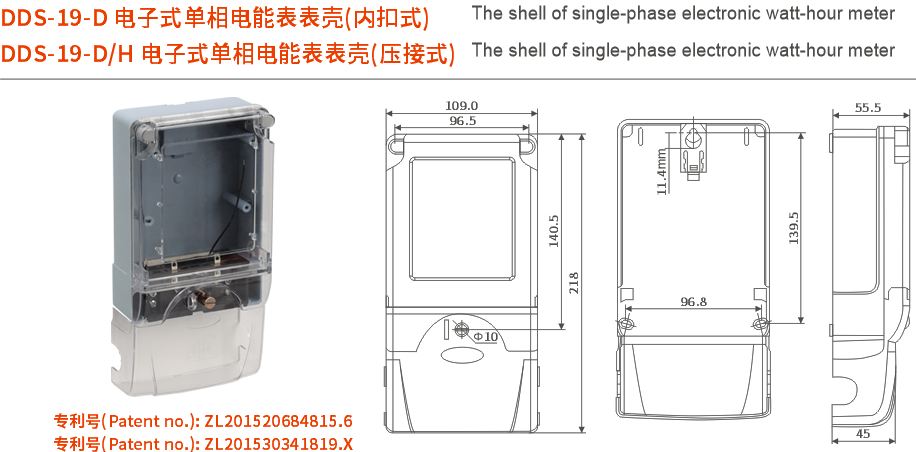

DDS-19-D电子式单相电能表表壳
技术参数
◎规格:端钮盒铜条,小A(7×9、8×10.5)、中A(9×11、10×12)
◎脉冲信号线:2、4、6、8线或2、4插片
◎电流配置:5(30)A带1-8组辅助端口
10(60)A带1-8组辅助端口
20(100)A带1-8组辅助端口
◎说明:采用塑料铅封,端子外置,采用内扣式设计,防窃电性
能更强,可选配多种标牌、压接式端钮盒、拆分式端钮盒。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(7×9, 8×10.5),
middle A(9×11,10×12)
◎Pulse signal lines:2,4,6,8 lines or 2,4 plug-in pieces
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note: it adopts plastic seal with, external terminal and internal buckle
design. lt has stronger anti-tampering performance. lt can be equipped
with many kinds of signs, crimp-type terminal box and split terminal box.
